swissSURFACE3D

swissSURFACE3D models all natural and man-made objects of the surface of Switzerland in the form of a classified point cloud. These high-accuracy and high spatial density data are collected by airborne LiDAR.

Access to geodata

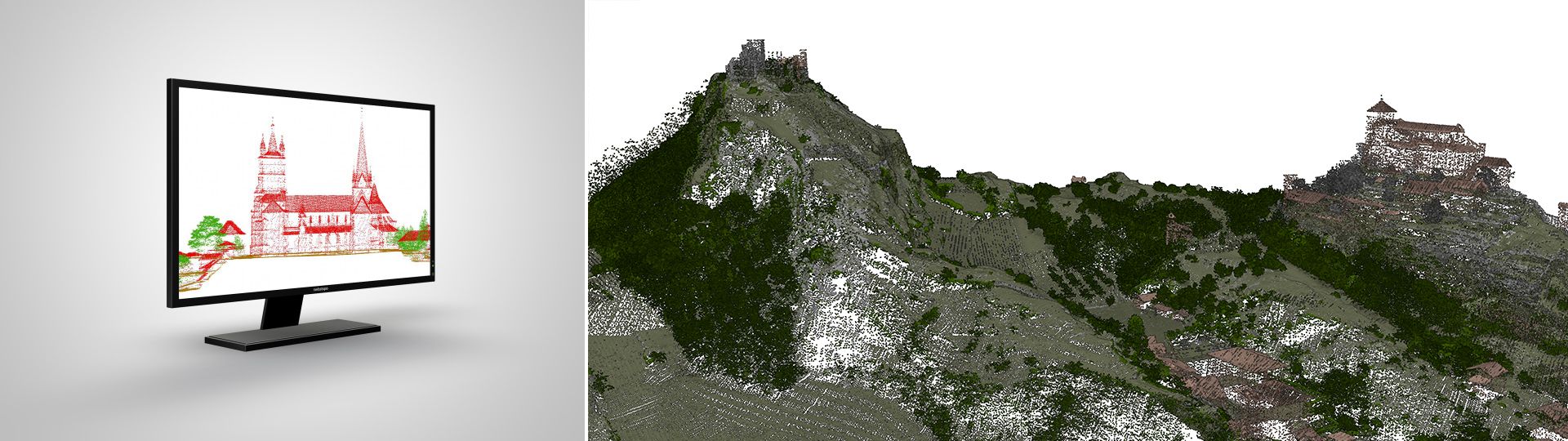

The classified point cloud of Switzerland

Based on airborne LiDAR, swissSURFACE^3D contains several millions of points per km2. These points are irregularly spaced between them and model the landscape in 3D with a high spatial density. Each measurement has very accurate X, Y, Z coordinates and is classified according to a predefined classification that defines the type of measured objects.

Applications

Automatic 3D modelling of buildings and other landscape objects
Volumes calculation
Study of the forest: map of cuts, calculation of biomass, planning of cuts, digital canopy models
3D modelling of ground-based elements under vegetation cover such as forest roads or watercourses
Creation of digital terrain models
Creation of digital surface models

swissSURFACE^3D will be available on the entire Switzerland and Liechtenstein from 2023 (see planning).

Terms of use

Additional information

Technical details

Structure: The data are delivered by complete 1 km² tiles.

Format and file sizes

LAS 1.2 : free download
- ~ 610 MB / tile, 16 TB / half of Switzerland
CSV (X;Y;Z;Class;Modified Julian Date): on request

Classification

Class	Object type	ASPRS* class name

1	Unclassified and temporary objects	« Unclassified »
2	Ground	« Ground »
3	Vegetation (low – medium – high)	« Low Vegetation »
6	Buildings	« Building »
9	Water	« Water »
17	Bridges, viaducts	« Bridge Deck »

Points density: Minimum 5 pts/m², mean around 15-20 pts/m²

Coordinates system: LV95 – LN02

Planimetric accuracy: +/- 20 cm (1 sigma)

Altimetric accuracy: +/- 10 cm (1 sigma)

Update: After the complete acquisition (in 2023), no update of swissSURFACE^3D is planned.

*American Society for Photogrammetry and Remote Sensing

Documents

Almost all publications concerning swissALTI^3D are only available in German and French. Please select your preferred language in the navigation bar to view the desired document.

Sample data

swissSURFACE3D LV95 / LN02

The sample data show their type and format. They are free of charge and can be used for test purposes only. It is not allowed to include them in a product.
